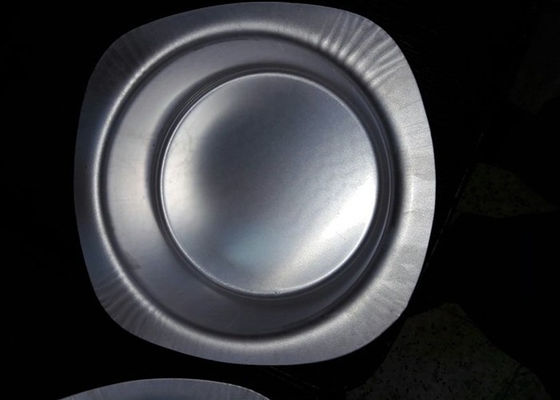

Food Grade 3003 Aluminum Disc , Electric Skillets Strong Aluminum Round Plate

Food Grade 3003 Aluminum Disc , Electric Skillets Strong Aluminum Round Plate

  • Food Grade 3003 Aluminum Disc , Electric Skillets Strong Aluminum Round Plate
Food Grade 3003 Aluminum Disc , Electric Skillets Strong Aluminum Round Plate
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Hobe
Chứng nhận: ISO/ROHS/SGS
Thanh toán:
Minimum Order Quantity: Negotiation
Giá bán: Negotiation
Packaging Details: Pallet or Wooden Case
Delivery Time: 15-25days
Supply Ability: 1500Ton per Month
Tiếp xúc
Chi tiết sản phẩm
sản phẩm: Vòng tròn tấm nhôm Hợp kim: 3003 3004 3005 3105
Kích thước: 11,5 inch x 3mm Nhiệt độ: O, H24
Công nghệ: DC Hình dạng: Vòng tròn
Điểm nổi bật:

aluminum discs

,

aluminium disk


Food Grade 3003 Aluminum Disc , Electric Skillets Strong Aluminum Round Plate



Quick Detal:



1 Alloy 1100 120 1050 1060 3003
2 Temper O H12 H14 H16 H18
3 Thickness 0.6~6.0mm
4 Diameter 120~1300mm
5 Application cookware traffic sign
6 Package wooden carton



Description:



We are one of the best manufacturers of international quality aluminium circles which is used in various industries. These circles passes through hard testing standards for best output .



Excellent corrosion resistance
Sturdiness
Longer life
Supreme finish
Aluminium Circles for Utensils



Our aluminum circle had widely used in all over the China and other Countries.
We are proud of our aluminum circle excellent quality, quality Leads To Win The Future.
We also could undertake many kinds of custom sizes. As we are manufacturer, we could provide goods with high quality and low price.



Technical Data

Alloy
AA1050, AA1060, AA1070, AA1100, AA3003, AA3005, AA3105, AA5052, AA8011

Temper:
H12, H14, H16, H18, H22, H24, H26, H32,HO, F

Thickness:
0.50-6.00mm

Diameter:
100mm- 1200mm

Standard:
GB/T3880-2006, ASTM, ISO, EU standard


Hobe Metal specializes in producing high purity Aluminum discs with the highest possible density and smallest possible average grain sizes for use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications. Our standard disc sizes range from 1" to 8" in diameter and from 2mm to 1/2" thick.





We can also provide discs outside this range. Hobe metal specializes in producing custom compositions for commercial and research applications and for new proprietary technologies. Hobe metal also casts any of the rare earth metals and most other advanced materials into rod, bar, or plate form, as well as other machined shapes and through other processes such as nanoparticles and in the form of solutions and organometallics.



Surface

1. There are no macular or roll marks on the surface of aluminum circle/disk/disc.
2. There is no water corrosion on the surface.
3.The surface of aluminum circle/disk/disc is very clean without lots of impurities.



Hobe aluminium manufactures circles of premium quality in variety of diameter and thickness as per the requirement of the customers. These are used in manufacturing home appliances like pressure cookers, non stick cookware and other agricultural activities. Below are the measurements and specifications in which we supply circles



Parameter Range Tolerance
Thickness 0.50 to 450mm 0.50 to 1.4 +/-0.08
1.4 to 2.5 +0.1-0.13
2.5 to 4.0 +/- 0.13
4.0 to 4.5 +/- 0.15
Diameter 101.6 to 1219 mm +2





Manufacturing of cookware Aluminium circle:



Decoiler → Accumulator→Tension Leveller →Acid&Alkali Cleaner → Rinse → Conversion Treatment → Priming coater →Infrared Curing Oven →Main coater → Floatation Curing Oven →Strippable Film Applicator → Exit Accumulator →Recoiler →Punch - Aluminium Circles





Specification



1 Product Aluminum Circle
2 Standard ASTM B209, GB/T3190-1996

3







Material







1050 1060 1070 1100 1200
    3003 3004 3105
    6061 6063 6082
    8011
4 Temper: O-H112
5 Color Silvery

6



Specification



Thickness:0.5mm-3.0mm
    Diameter:100mm-900mm
7 Package Export wooden package,with paper interleave,plastic film before wooden package
8 MOQ 1 ton
9 Supply Ability 3000 tons per month
10 Application Pans, pots, cookware, high pressure cooker, traffic signs,etc

11



Container Size



20Gp-2.352 (width) *2.385 (Height) *5.90 (Inside length) Meter
    40Gp-2.352 (width) *2.385 (Height) *11.8 (Inside length) Meter
12 Export Region America, Canada, Japan, England, Saudi Arab, India, Singapore, Korea, Australia, Brazil, Mexico, Russia, Turkey,
13 Payment terms T/T, L/C, West Union, etc.
14 Delivery time 15 days against payment
15 Port of shipment Shanghai port
16 Trade Terms FOB, CFR, CIF, Ex-work, etc.





Application of Aluminium circle:



1. Deeply-drawing for making kitchenware
2. Cookware
3. Cooking-utensil
4. Non-stick pans/pots
5. Traffic sign
6. Reflector
7. Cold-extrusion





Competitive Advantage:



1. Factory direct sells, with competitive price.

2. Quick delivery time, according to the clinet's demand

3. Expert in producing cold rolled and hot rolled aluminium circles

4. Can supply small trial orders

5. Many years producing technology to supply high quality products

6. Quick reply on the customer's questions
